Specifications


  Image Sensor: 1/3 Sony CCD Chip

  Camera Mounting Height: 12 ~ 14 ft

  Activation Time: 1 ~ 2 seconds

  IR Range: 100 ft (~30m) in total darkness

  S/N Ratio: 48 dB

  Cable and Power: Cat5e and power over Ethernet (PoE)

  Ambient Temperature: -22 F ~ 140 F (-30 C ~ 60 C)

  Operating Humidity: 0% ~ 96%

  Operating Environment: All weather, day and night

  Dimension (computer): 8.5(L)6.5(W)2(H)

  Dimension (sensor): 5(L)7(W)3.5(H)

  Failsafe and watch dog timer support

Download
   Product configuration user guide can be downloaded  here.

Product cutsheets can be downloaded  here.

   Product installation guide can be downloaded  here.
   Reporter user guide can be downloaded  here.


MigmaPedCountTM Reporter Download
            Step 1: Download environment setup: MCR Installer
            Step 2: Download setup program
                               ClientGUI 32bit
ClientGUI 64bit













Phone:
 (508) 660-0328                                            Fax: ( 508) 660-0288                                            Email:
contact@migmasys.com



Copyright@ 2002-2017 by Migma Systems, Inc. All Rights Reserved

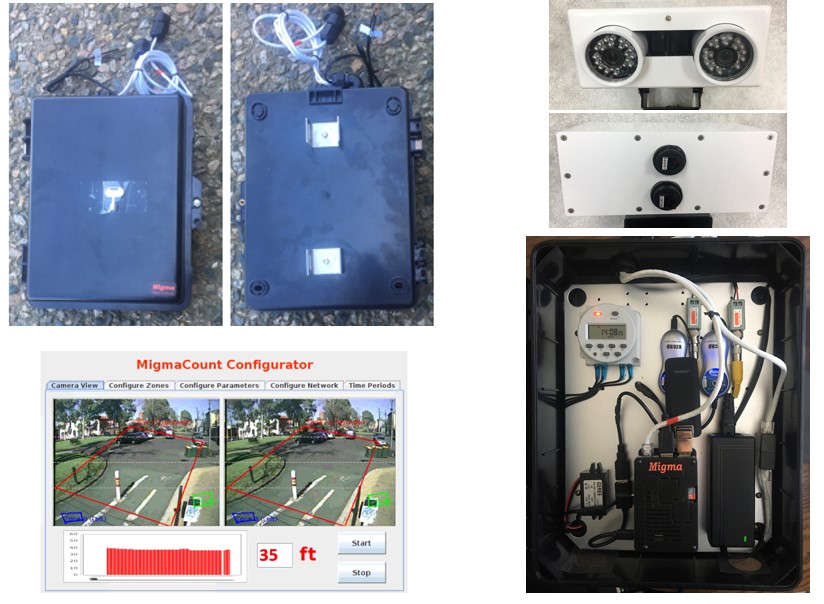

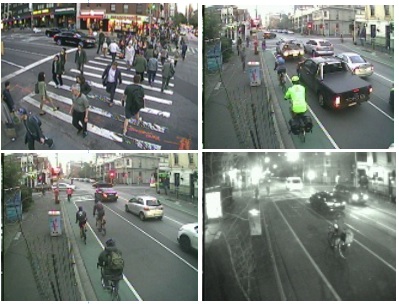

MigmaPedCountTM is an outdoor passive pedestrian detector and counter at street crossings. It can count multiple pedestrians walking in groups through advanced pedestrian tracking technology. The pedestrian counting sensor consists of stereo camera and scanning laser. Advanced features include:


High resolution IR LED stereo camera for day/night detection
           High resolution laser scanner for separation of pedestrians
           Industrial single board computer (SBC) running Windows XPe

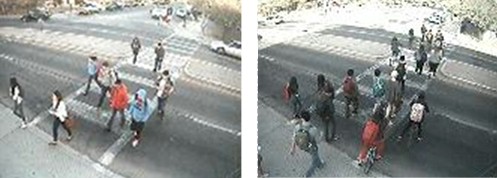

          Counting large number of pedestrians walking in groups and
             in two directions simultaneously with accuracy over 95%
           Pedestrian counts and/or images are saved locally in USB drive

         and/or remotely at the server in traffic control center

Stored data are organized in terms of timestamps and location

         names such as state, city, intersection and corner

Standalone system utilizing city network for data transmission
           Sensor is powered over Ethernet (PoE)


Simple wiring and connection using CAT5e Ethernet cables







MigmaPedCountTM



MigmaPedCount

MigmaWalktime





In addition to accurate pedestrian counting, MigmaPedCountTM also provides intersection performance measure that include:


Pedestrian volume at different time

Pedestrian average walking speed

Pedestrian occupancy per signal phase

A standalone desktop software application can be used to remotely access pedestrian counts and intersection performance measure stored at the server and be graphically displayed at local computers.
