Specifications

System Operation
          Sign Size: Any
          LED Quantity: ≥ 8 (amber, red or white)
          LED Lifetime: 50,000 Hours
          Visual Distance: ≥ 1600 ft
          Operating Time: 20 rainy days after fully charged
          Enclosure: NEMA Type 3R+ and IP55 Rated
          Material: UV-stabilized polycarbonate
          Flashing Mode: Motion/button-activated or continuous

Solar
          Solar Panel Power: 20W
          Battery Capacity: 20aH

Detector
          Sensor: PIR motion sensor
          Sensing Range: 30 ft (sensor to vehicle)
          Comm Distance: 1,500 ft (sensor to beacon flasher)
          Power: Solar
          Communication: Wireless

Download
         Product cutsheet can be downloaded here.













Various studies have indicated that continuously flashing signs do not necessarily attract driver’s attention because they are always on and drivers get used to them. In addition, they flash 24/7, day and night, even when there are no vehicles or pedestrians on the streets, which could also introduce the visual noises to the residents living nearby.

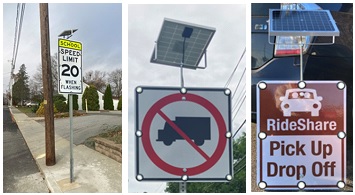

Migma Systems has developed an alternative product, Distributed Sensing Flashing Sign (DSFS). The sensor receiver is embedded inside the housing of flashing sign, drawing power from solar panel or solar battery. Using solar-powered detector, it flashes only when vehicles or pedestrians are detected within certain distance (up to 1500 ft) to the flasher. Otherwise, it is off! As an economic solution, it can also be installed at midblock crossing to automatically trigger the flashing sign when pedestrians are waiting to cross, without any pushbuttons.

Some vehicle drivers can be easily distracted by devices such as smart phones while driving. These distractions, caused by their devices, are well documented, rising cause of pedestrian and/or vehicle accidents and sometimes fatalities. Migma Distributed Sensing Flashing Sign can make a difference!  (USPTO Patent: 10,950,122)
