Specifications

  Image Sensor: 1/3 Sony CCD Chip

  Camera Horizontal Resolution: 700 TV lines

  Camera Mounting Height: 10 ~ 18 ft

  Camera Power: Power over Ethernet (PoE)

  IR Range: 100 ft (~30m) in total darkness

  S/N Ratio: 48 dB

  Cable: Cat5e Ethernet cable

  Operating Temperature: -22 F ~ 158 F (-30 C ~ 70 C)

  Operating Humidity: 0% ~ 96%

  Operating Environment: All weather, day and night

  SBC Dimension (computer): 8.5(L)6.5(W)2(H)

  Stereo Camera Dimension: 5(L)7(W)3.5(H)

  Failsafe and watch dog timer support

Download

  Product installation user guide for Campbell APS
      pushbuttons can be downloadedhere.

   Product installation user guide for Polara APS pushbuttons
      can be downloadedhere.

   Product installation user guide for Novax APS pushbuttons
      can be downloadedhere.

   Product configuration user guide can be downloaded here.
   Product cutsheets can be downloadedhere.


   MigmaPD Viewer setup program can be downloaded here.

   MigmaPD Viewer user guide can be downloadedhere.













Phone:
 (508) 660-0328                                            Fax: ( 508) 660-0288                                            Email:
contact@migmasys.com



Copyright@ 2002-2014 by Migma Systems, Inc. All Rights Reserved



MigmaIntersectionTM is a sophisticated pedestrian detector with interface to APS pushbuttons for locator tone triggering and automated pushbutton actuation. Using this detector, APS locator tone is silent unless a pedestrian is within 12 ft from the signal pole. Based on the presence of pedestrians, APS or mechanical pushbuttons can also be automatically actuated. It offers advanced features including:

  High resolution IR LED stereo camera for day and night
  Industrial single board computer (SBC) running Windows XPe
  Remote view, configuration and diagnosis using aircard (optional)

Robust pedestrian detection using stereo vision analysis
  Two-zone support for APS locator tone triggering and pushbutton actuation

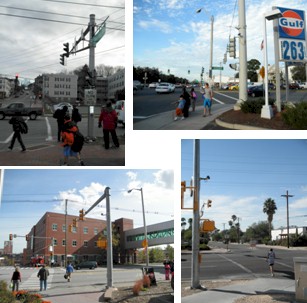

MigmaIntersectionTM utilizes field-proven technologies for pedestrian detections at street crossings and intersections.

  Analytical video cueing and 3D pattern recognition

Pedestrian detection at both day and night (total darkness)

Work under any weather conditions |

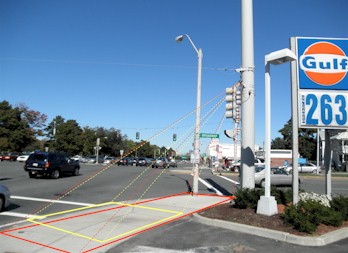

Two configurable pedestrian detection zones

Interface with flasher and traffic controller

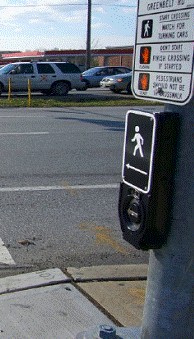

Support of APS pushbuttons made by Campbell, Novax and Polara

Over 98% detection rate and negligible false calls per day
