Specifications

System Operation
          Diameter: 12"
          Luminous Intensity: ≥ 4000 cd
          LED Lifetime: 5.5 years
          Visual Distance: ≥ 1600 ft
          Operating Time: 30+days with motion sensor
          Enclosure Protection: IP65
          Material: UV-stabilized polycarbonate
          Flashing Mode: Motion/button or continuous

Trail Counter
          Data Format: CSV with counts and timestamp
          Data Storage: Onboard memory card (several years)

Detector
          Sensor: PIR motion sensor
          Sensing Range: 30 ft (sensor to vehicle)
          Comm Distance: 1,500 ft (sensor to beacon flasher)
          Power: Solar
          Communication: Wireless

Download
         Product cutsheet can be downloaded here.













The continuously flashing beacons may not necessarily attract driver’s attention because they are always on and drivers get used to them already. In addition, they flash 24/7, day and night, even when there are no vehicles or pedestrians on the streets, which might also introduce the visual noises to the residents living nearby.

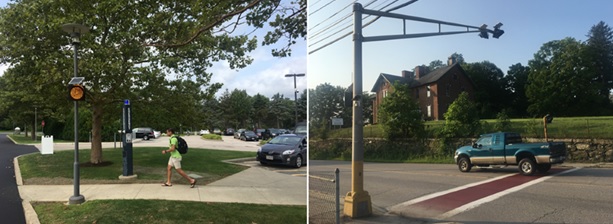

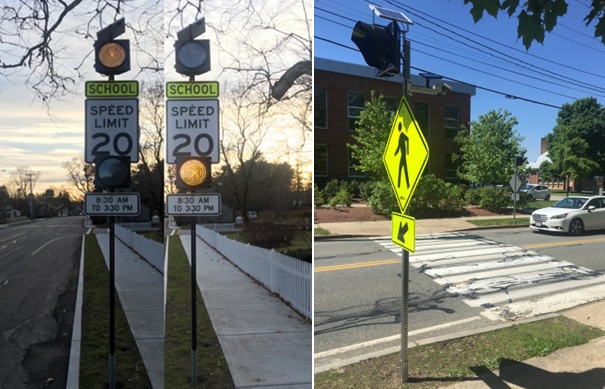

Migma Systems has developed an alternative product, Distributed Sensing Flashing Beacon (DSFB). The sensor receiver is embedded inside the housing of flasher, drawing power from solar panel or solar battery. Using solar-powered detector, it flashes only when pedestrians who are waiting at midblock curb are detected. Otherwise, it is off! The sensor response time is about 1 second.

Some vehicle drivers can be easily distracted by devices such as smart phones while driving. These distractions, caused by their devices, are well documented, rising cause of pedestrian and/or vehicle accidents and sometimes fatalities. Migma Distributed Sensing Flashing Beacon can make a difference!  (USPTO Patent: 10,950,122)
