Specifications

Base Station
     Visual Indicator: LED turned on after pedestrian detection
     Activation Time: < 1 second
     Detection Zone: Adjustable manually (no software)
     Power: 100 - 240VAC (default) or solar
     External Wiring: (1) Power wire to AC power or solar
                                  (2) Relay wire to push button terminals
    Closure Time: 1 - 10 seconds
     Sensor Height: 7 - 13 ft
    Dimension: 10'' x 9'' x 4''
     Enclosure: NEMA Type 3R+ and IP55 Rated
     Temperature: -13 °F — 140 °F (-25 °C — 60 °C)
     Humidity: 0% ~ 96%

Pedestrian Detector
     Sensor: PIR motion sensor
     Sensing Range: 30 ft (sensor to pedestrian)
     Comm Distance: >600 ft (sensor to base station)
    Power: Solar


Product cutsheets can be downloaded here.













Statistically, during normal time, about 50% of pedestrians do not push the pushbuttons when going across crosswalks or intersections. It is expected that more and more pedestrians will no longer push the pushbuttons during and after pandemic, which could potentially increase pedestrian injures or fatalities.

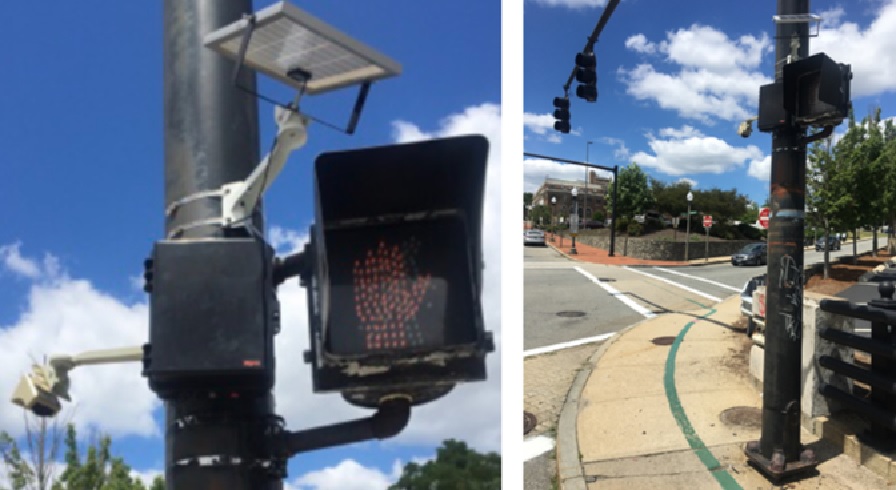

Migma Systems has developed an innovative and inexpensive product, AutoButton. As a supplement to the regular pushbuttons, it can detect the presence of pedestrians at curb cut and automatically place the ped calls for them. Using this product, pedestrians do not need to push the pushbuttons at signalized midblock or intersection, which effectively improves pedestrian safety and, through eliminating signal recalls, increases the traffic flow.

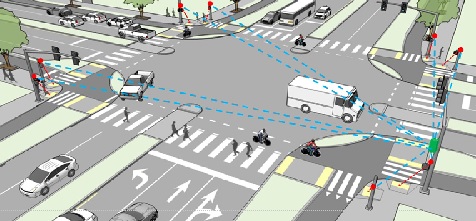

AutoButton can also actuate ped signals such as RRFB or flashing signs on both sides of crosswalk through wireless radio communication, thus, eliminating the need of pulling cables through underground conduit. This built-in wireless communication capability makes the product easy to install and maintain. (USPTO Patent: 10,950,122)
