MigmaMidblockTM












































MigmaMidblock
TM
offers advanced features for pedestrian detection at midblocks and street intersections.



  Analytical video cueing and 3D pattern recognition

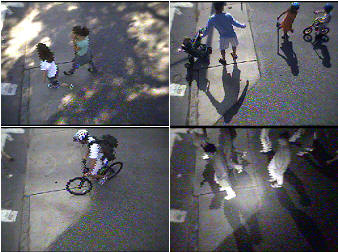

  Pedestrian detection at both day and night
  Operate under any weather conditions

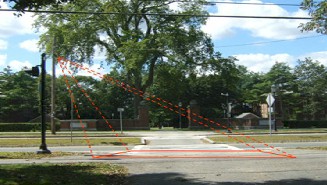

  Configurable pedestrian detection zone

  Interface with RRFB through relay contact

  Small size suitable for pole mount cabinet

  Simple wiring and connection using Ethernet cables

  Superior detection performance with very low false calls





















































MigmaMidblockTM is a sophisticated pedestrian detector at midblock crossings for automated RRFB actuation to alert the approaching vehicle drivers about the pedestrians who are about to enter the crosswalk.

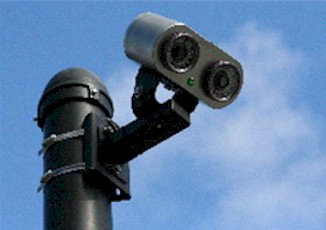

  High resolution IR LED stereo camera for day and night

  High performance single board computer (SBC)

  Remote view, configuration and diagnosis over Ethernet

  Directional detection to avoid unnecessary detections

  Support of Power-over-Ethernet (PoE) for stereo cameras






























MigmaMidblockTM is designed to meet the traffic engineering requirements for pedestrian detections in outdoor environment. Built-in IR LEDs are turned on under low illumination for night time pedestrian detection.


  Image Sensor: 1/3" Sony CCD Chip
  Camera Resolution: 700 TV lines
  Camera Mounting Height: 12 ~ 18 ft
 Activation Time: ~1 second (adjustable)
  IR Range: 100 ft (~30 m) in total darkness
 S/N Ratio: 48 dB
  Cable: CAT5e Ethernet cables
  Operating Temperature: -22F ~ +158F (-30 C ~ +70 C)
  Operating Humidity: 0% ~ 96%

  SBC Dimension: 8(L) x 6.5(W) x 2(H) (inch)
  Operating Environment: All weather, day and night
  Failsafe and watchdog timer support


Download


  Product installation user guide can be downloaded here.

  Product configuration user guide can be downloaded here.

  Product cutsheets can be downloaded here.
