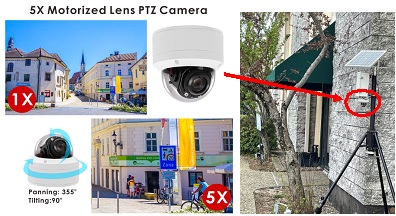

Most remote surveillance cameras often don’t have access to AC power which is either not available or costly to  access. To utilize solar as a power source, the camera system must be low in power consumption, including camera, router and cellular modem. Migma AutoCam is designed as a low power surveillance video system, suitable for solar power. Using a cellular modem integrated with MigmaRouter, it helps view live streaming videos using smart phones without relying on any dedicated cloud. One can remotely adjust the camera’s pen & tilt using phone.

Video Compression
     Compression: H.265/MJPG
     Bit Rate: 32Kbps ~ 12Mbps (CBR/VBR)
     Triple Streams: Yes

Pan/Tilt
     Panning Range: 0° ~ 355°
     Panning Speed: 45°/s
     Tilting Range: 0° ~ 90°
     Tilting Speed: 25°/s
     Remote Control: Yes (web browser or smart phone)

Network
     Protocol Support: HTTP, TCP/IP, IPv4, UPNP, RTSP,
                                         UDP, SMTP, NTP, DHCP, DNS,
                                         IP Filter, PPPOE, DDNS
     Remote Control: Web browser (IE, Firefox, Safari
                                        and Chrome); Smart Phone
                                        (iOS and Android)
     Cellular Modem: Yes (integrated with MigmaRouter)

Operating Environment
     Temperature: 14°F ~ 140°F (-10°C ~ 60°C)
     Humidity: 10% ~ 90%
     Weather Proof: IP66

Power (AC or Solar)
     Voltage: 110VAC or 12VDC
     Solar Panel: 25W
     Battery: 20aH

Camera
     Image Sensor: 1/2.8" progressive scan CMOS
     Shutter Speed: 1/25s to 1/100,000s
     Minimum Illumination: Color: 0.05 lux, BW: 0 lux with IR
                                                   (F1.2, AGC ON)
     Dynamic Range: Digital wide dynamic range (WDR)
     Noise Reduction: 3D digital noise reduction (DNR)
     Night Vision: IR cut filter with auto switch
     IR Range: Up to 115 ft
     Motion Detection: Yes with email notification
     Privacy Zone: Yes (up to 4 zones)

Lens
     Zoom Ratio: 5X Optical
     Focal Length: 2.7mm - 13.5mm
     Auto Zoom: Yes
     Remote Zoom: Yes (motorized zoom)

     Max Image Resolution: 1920×1080 (2MB)
     Frame Rate: 20fps (50Hz or 60Hz)
     Sub Stream: 50Hz: 25fps (640×360, 352×288)
                               60Hz: 30fps (640×360, 352×288)
     Third Stream: 50Hz: 25fps (640×360, 352×288)
                                  60Hz: 30fps (640×360, 352×288)
     Image Enhancement: BLC/3D DNR/D-WDR
     Image Settings: Adjustable rotate mode, saturation,
                                     brightness, contrast, sharpness
     Other Features: Anti-flicker, heartbeat, mirror,
                                     password, privacy mask, watermark













Download
          Product cutsheet can be downloaded here.
