Specifications


  Image Sensor: 1/3 Sony CCD Chip

  Camera Horizontal Resolution: 700 TV lines

  Camera Mounting Height: 10 ~ 15 ft

  Activation Time: 1 ~ 2 seconds (programmable)

  IR Range: 100 ft (~30m) in total darkness

  S/N Ratio: 48 dB

  Cable and Power: Cat5e and power over Ethernet (PoE)

  Operating Temperature: -22 F ~ 158 F (-30 C ~ 70 C)

  Operating Humidity: 0% ~ 96%

  Operating Environment: All weather, day and night

  Chassis Dimension: 8.5(L)6.5(W)2(H)

  Stereo Camera Dimension: 5(L)7(W)3.5(H)

  Failsafe and watch dog timer support

Download
   Product configuration user guide can be downloaded  here.

Product cutsheets can be downloaded  here.

   Product installation guide can be downloaded  here.
   MigmaBicycleTM Reporter guide can be downloaded  here.


MigmaBicycleTM Reporter Download
            Step 1: Download environment setup: MCR Installer
                                                                         JRE Iinstaller

            Step 2: Download setup program
                               Reporter 32bit
Reporter 64bit













Phone:
 (508) 660-0328                                            Fax: ( 508) 660-0288                                            Email:
contact@migmasys.com



Copyright@ 2002-2014 by Migma Systems, Inc. All Rights Reserved







MigmaBicycleTM is a sophisticated bicycle detector and counter at bike paths or shared roadways. It can be used to place bike calls when bicyclists are detected in forward and left turn directions. Bicycle counts are stored, 24/7, and their summary reports can be easily generated and saved in Excel based on average counts in hourly, daily, weekly, monthly or annually formats.

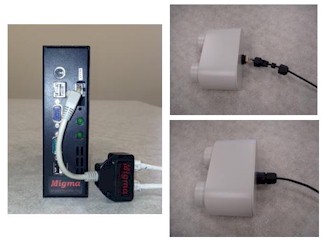

  High resolution IR LED stereo camera for day/night detection

  Industrial single board computer (SBC) running Windows XPe
  Remote view, configuration and diagnosis over Ethernet (option)

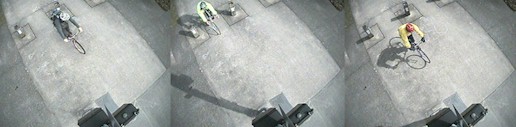

Robust bicycle detection/counting using stereo vision analysis

Detecting and counting bicycles in both forward and left turn directions
  Directional detection to avoid unnecessary detections

Separate bicycles from vehicles in shared roadways











MigmaBicycleTM



MigmaPedCount

MigmaWalktime



MigmaBicycleTM utilizes the field-proven technologies for bicyclist detection and offers advanced features:

  Persistent counting and storing of bicycle volumes, 24/7

Analytical video cueing and 3D pattern recognition

Bicycle detection both day and night, even in total darkness

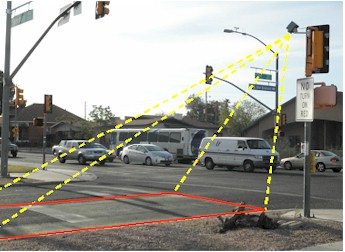

Configurable bicycle detection zone

Interface with various traffic devices through relay contacts


Small platform size suitable for pole-mount cabinet

Simple wiring and connection using CAT5e Ethernet cables
